Aventon Abound SR vs LR (vs Original)

If you’re shopping between the Aventon Abound SR vs LR, you’ve probably noticed they look nearly identical at first glance. Same 750W motor. Same smart control unit. Same rugged cargo frame.

But step back in time to the original Abound, and you’ll see how Aventon’s design has evolved — from the first long-tail cargo ebike to today’s split lineup: the Short Rack (SR) and Long Rack (LR).

Let’s break down exactly what’s changed, how the SR and LR differ, and which one best fits your lifestyle.

What SR vs LR Actually Mean

The Abound SR (Short Rack) is built with a compact wheelbase and smaller rack, making it lighter, quicker to maneuver, and far easier to store in tight bike rooms or apartments. It’s the city-friendly version that thrives in urban spaces.

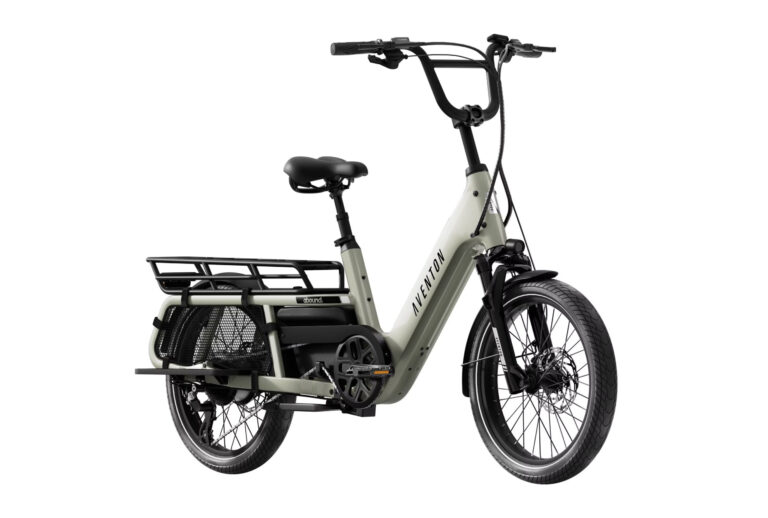

The Abound LR (Long Rack) extends the rack and wheelbase, adding stability and passenger capacity. That extra length makes it the better choice for hauling two kids, doing grocery runs, or carrying heavy cargo. It takes up more room, but the payoff is confidence and balance under load.

Both share the same drivetrain, battery, and Aventon Control Unit (ACU) smart system. What changes is geometry — and how that affects handling and hauling.

How It Started: The Original Aventon Abound

When the first Abound launched in February 2023, it introduced Aventon’s take on the compact cargo category: 20-inch wheels, an integrated rear rack, and 440-lb payload capacity.
It ran a 48V, 14.4AH, 678.2Wh battery and 750W rear hub motor (1200W peak), offering strong hill-climb torque and a claimed 50-mile range.

It was an instant success among riders carrying kids or gear — but reviewers noted its long wheelbase (1274 mm) made it a bit cumbersome in urban spaces.

That feedback set the stage for 2025’s two follow-ups: the SR (shorter and easier to store) and the LR (longer, more stable, with modern tech).

Specs at a Glance

Feature	Original Abound	Abound SR (Short Rack)	Abound LR (Long Rack)
Price	$1,599	$1,699	$1,799
Release	Feb 2023	Oct 2024	Mar 2025
Colors	Sage, Polaris	Haze, Cobalt, Stealth	Sage, Matte Stealth
Frame / Geometry Notes	Long-tail aluminum cargo frame	Compact alloy frame; shorter chainstay (480 mm)	Extended rack section; reinforced stays
Motor	750W hub (1200W peak)	750W hub (1188W peak), 80Nm torque
Battery	48V, 14.4AH, 678.2Wh	36V, 20Ah, 733Wh
Range	Up to 50 miles	Up to 60 miles	Up to 60 miles
Payload	440 lbs
Rack capacity	143 lbs
Brakes	Tektro HD-E350 hydraulic	Tektro HD-E3520 hydraulic	Same + quick-disconnect wire
Weight	82 lbs	80 lbs	88 lbs
Wheelsize	20” x 2.4”	20” x 3.0”
Wheelbase	1274 mm	1151 mm	1332 mm
Drivetrain	Shimano 7 Speed	Shimano Altus RD-M310 8 Speed
Display	LCD Smart “Easy Read”	Aventon BC147
Storage fit	Bulky for small apartments	Easier in apartments	Needs more space
Accessories	Cargo panniers, seat pads	Same + new modular mounts	Full passenger ecosystem (handrail, seat pad, footrests)

Bottom line: all the core tech is identical. What changes is rack size, handling, and how much passenger/cargo versatility you unlock.

What Changed Between Generations

Here’s a closer look at what’s actually new from the original Abound → SR → LR evolution.

Frame & Geometry

Shorter Wheelbase: SR shrinks the wheelbase by ~5 inches (1,151 mm vs 1,274 mm), improving maneuverability.
Longer Rear Deck: LR extends the tail by ~7 inches over SR for more passenger room and cargo balance.
Chainstay: Shortened on SR (480 mm) vs. longer, load-oriented stays on LR and original.
Frame Material: All three use 6061 aluminum, but SR/LR frames are newly cast with integrated cable routing and reinforced rack mounts.

Drivetrain & Components

Original Abound: Shimano 7-speed
SR & LR: Upgraded to Shimano Altus 8-speed
Brakes: Tektro hydraulic upgraded from HD-E350 → HD-E3520 for improved modulation and serviceability
LR: Adds quick-disconnect brake wires for easier maintenance

Battery & Electrical System

Voltage shifted from 48V (15Ah) to 36V (20Ah) across SR/LR models, improving range consistency with new 21700 cells.
Both SR/LR integrate Aventon’s new ACU (Aventon Control Unit) — a major leap:
- 4G + GPS connectivity
- Geofencing & motor disable via app
- OTA firmware updates
- Keyless battery release & optional startup password

Tires & Ride Feel

Tire width increased from 2.4″ → 3.0″, giving the SR/LR better traction, smoother ride, and improved stability under load.
SR rides tighter and lighter; LR adds length for balance under weight.

Electronics & Smart Features

Original Abound used a standard LCD display.
SR/LR replace that with a smart touchscreen display tied into the ACU system.
Both new models support Class 1 / 2 toggle directly from the app.

Rack & Accessory Ecosystem

Original Abound introduced a 143-lb-rated rack.
SR keeps the same rating but smaller footprint — fits one child seat or cargo basket.
LR’s extended rack supports two kids + running boards + handrail.
LR also adds an integrated passenger ecosystem and MIK-compatible mounts.

Battery & Real-World Range

Both the SR and LR run on Aventon’s 733Wh removable battery, built with LG 21700 cells. Aventon rates them for up to 60 miles, though real-world numbers depend on hills, cargo, and assist level.

With a single rider on flat ground, 45–55 miles is realistic.
Add two kids and hills? Expect closer to 30–40 miles, especially on the LR.
Original Abound: 35–50 mi (720Wh battery, 48V system)

Good news: charging is quick and easy with Aventon’s removable pack, so topping up mid-day is always an option.

Accessories Compatibility

Here’s where choices matter:

LR unlocks Aventon’s passenger kits—handrails, seat pads, footrests—making it family-haul ready.
SR is too compact for the handrail kit, but it still supports front racks, cargo baskets, panniers, and rear bags.
The Original Abound supported most current cargo add-ons, though lacked modular quick-mounts.

So, if you need to haul two kids, the LR is your only real option. For one child seat or light cargo, the SR still handles it fine.

Price & Value

With just a $100 difference between them, both offer strong value around the $2,000 mark. The SR at $1,699 is the budget-friendly option for riders who don’t need passenger kits. The LR at $1,799 is widely considered one of the best-value family cargo ebikes on the market, since that small price bump unlocks big hauling capabilities.

Which Should You Buy?

Here’s how to decide:

Buy the SR if:

You live in an apartment or tight space.
You want a compact, nimble ride.
You’re riding solo or carrying one small child.

Buy the LR if:

You need to haul two kids regularly.
You want stability under heavy cargo.
You’re doing school runs, grocery trips, or long weekend rides.

Already own the original Abound?

Expect a smoother ride, smarter controls, and a more refined frame if you upgrade — but your core performance (motor power, payload) stays familiar.

Final Take

From the original Abound to the SR and LR, Aventon’s cargo lineup has matured into two clear directions:

SR: Compact and city-friendly.
LR: Long-range hauler built for families.

Both pack Aventon’s new smart tech, stronger braking, and sturdier frame — while the original remains a reminder of how far Aventon’s cargo platform has come.

FAQs

Can you switch SR/LR between Class 1 and 2?
Yes—disable the throttle in the app to ride Class 1.

Are they water resistant?
Yes, rated IPX5. Rain and splashes are fine, but don’t submerge.

Are they UL certified?
Yes. Aventon batteries are UL listed.

Can the LR’s handrail kit fit the SR?
No. The SR’s rack is too short.
